| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm@ F1.6, viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle:28° (Vertica), 52° (Horizontal), 60° (Diagonal) |
| PT Angle |
Pan: 350°, Tilt: 80° |
| Minimum Illumination |
0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Lens Mount |
M12 |
| Day & Night |
IR-Cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Night Vision Distance |
30 m / 98 ft |
| Video & Audio |
| Max. Resolution |
2560 × 1440 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main Profile |
| Video Bit Rate |
Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Transmission Rate |
11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage |
| Local Storage |
MicroSD card slot (Up to 512GB) |
| Cloud Storage |
EZVIZ Cloud Storage (Subscription Required) |
| Function |
| Smart Alarm |
AI-Powered Human Shape Detection |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Preset Locations |
Supports |
| General |
| Operating Conditions |
-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade |

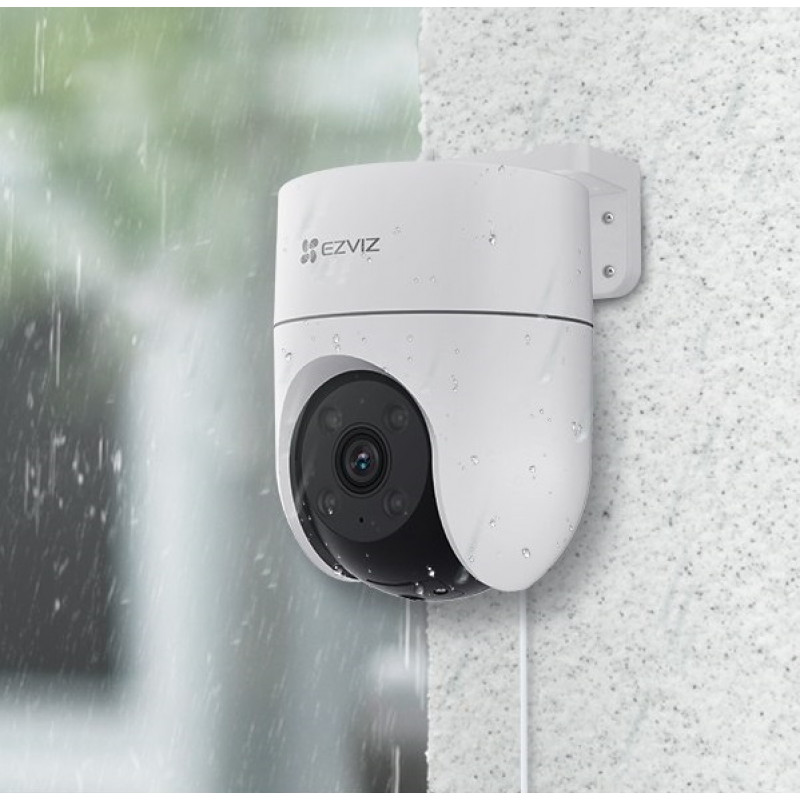

Weatherproof Design |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
MAX. 12W |
| Dimensions |

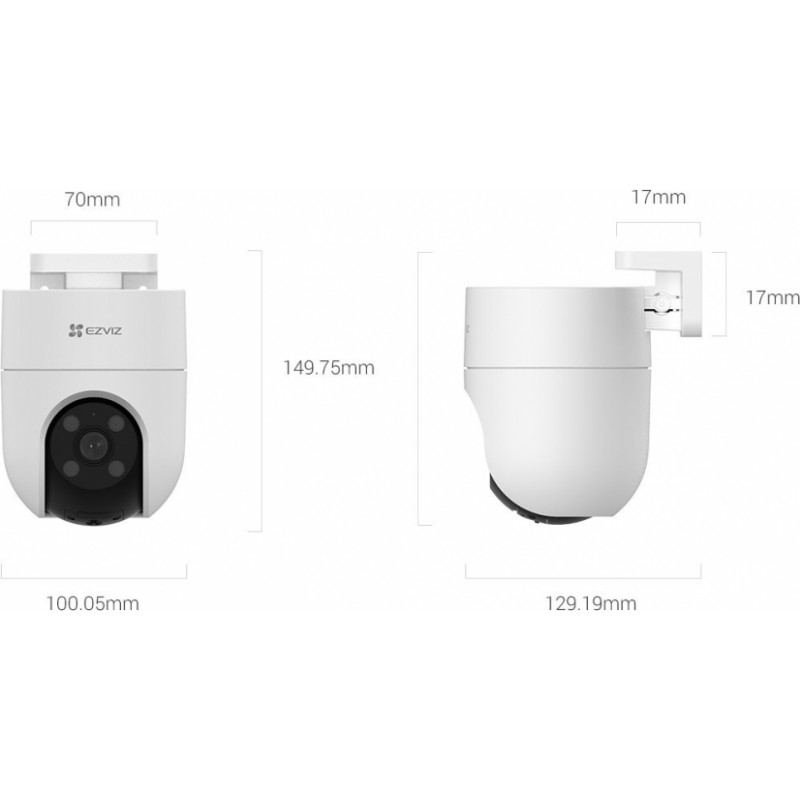

100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch) |
| Packaging Dimensions |
140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Weight (With package) |
745 g (26.28 oz) For EU Standard Version |
| Net Weight |
435 g (15.34 oz) |
| In the box |
| In the box |
- H8c 2K⁺ Camera |
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
